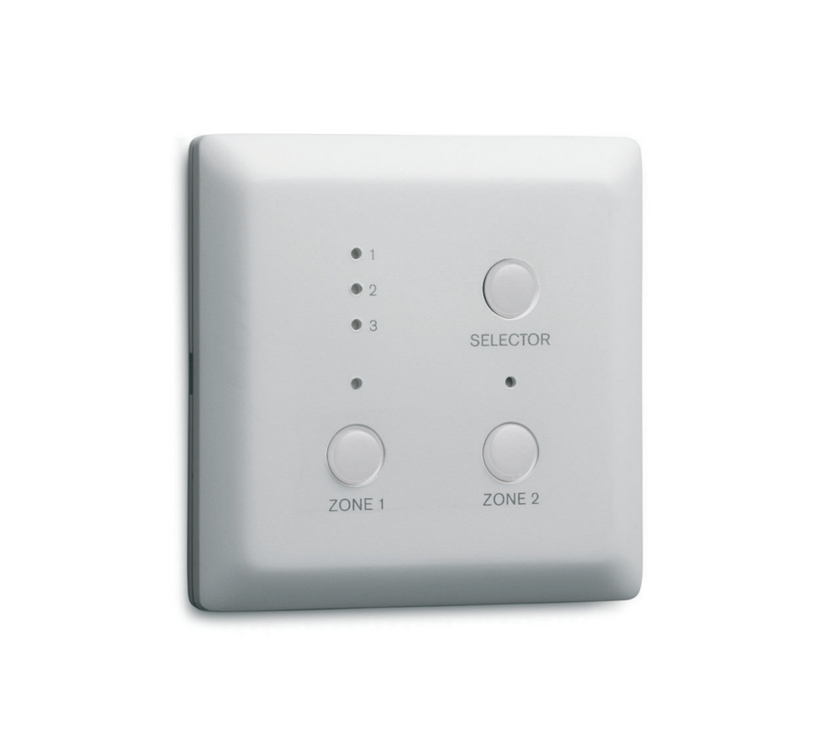

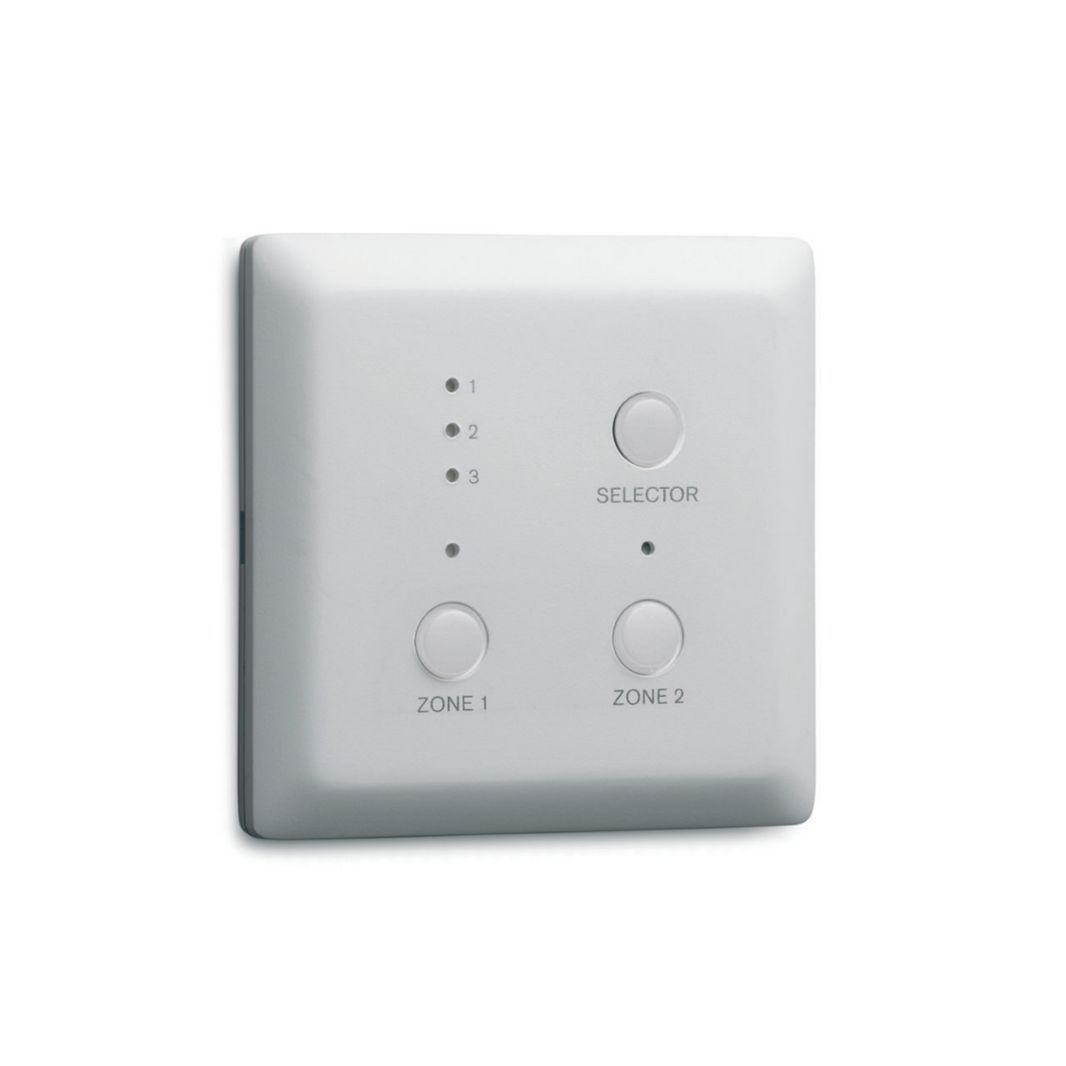

PLE‑WP3S2Z‑EU Wall Panel

Key Features

• Remote control for Plena Easyline mixers/amplifiers.
• Select from three music input sources remotely.
• Activate or deactivate two audio zones.
• LED indicators for music source and zone status.
• Daisy-chain capability for up to four wall panels.

Overview
The Bosch PLE‑WP3S2Z‑EU Wall Panel offers seamless remote control of the Plena Easyline (PLE) series mixers and amplifiers. It enables easy selection of music sources and zones, making it a perfect companion for Bosch volume controls. With a sleek, unobtrusive design, it integrates well into any interior.

Functions

• Remote Control: Easily switch between two zones and three music sources.
• Indicators: LED lights display the active zones and selected input source.
• Quick Connectivity: Uses CAT‑5 cable with RJ‑45 connectors for fast setup without complex settings.
• Flexible Installations: Daisy-chain up to four panels for extended control in larger spaces.

Specifications
Electrical

• Power Supply: 5 VDC via the connected amplifier.
• Current Consumption: <50 mA.
• Connections: 1 RJ‑45 to mixer/amplifier, 1 RJ‑45 loop-through.

Mechanical

• Dimensions: 87 x 87 x 21 mm (3.43 x 3.43 x 0.83 in).
• Weight: Approx. 0.35 kg (0.77 lb).
• Color: White with silver label text.

Environmental

• Operating Temperature: -10°C to +45°C (14°F to +113°F).
• Storage Temperature: -40°C to +70°C (-40°F to +158°F).
• Humidity: <95%.

Parts Included

• 1 PLE‑WP3S2Z‑EU Wall Panel.
• Quick Reference Card.
