Key Features:

• Two Weekly Programs: Schedule events with accuracy down to one minute for each day.
• 14 Chimes: Includes 14 different chimes that can be triggered on demand.
• Six Programmable Contact Outputs: Relays for connecting to external equipment, including open, close, or pulse actions.
• Automatic Daylight/Standard Time Adjustment: Ensures correct time handling and switching between daylight saving and standard time.
• BGM Volume Control: Automatically adjusts background music levels at scheduled times.

Description:

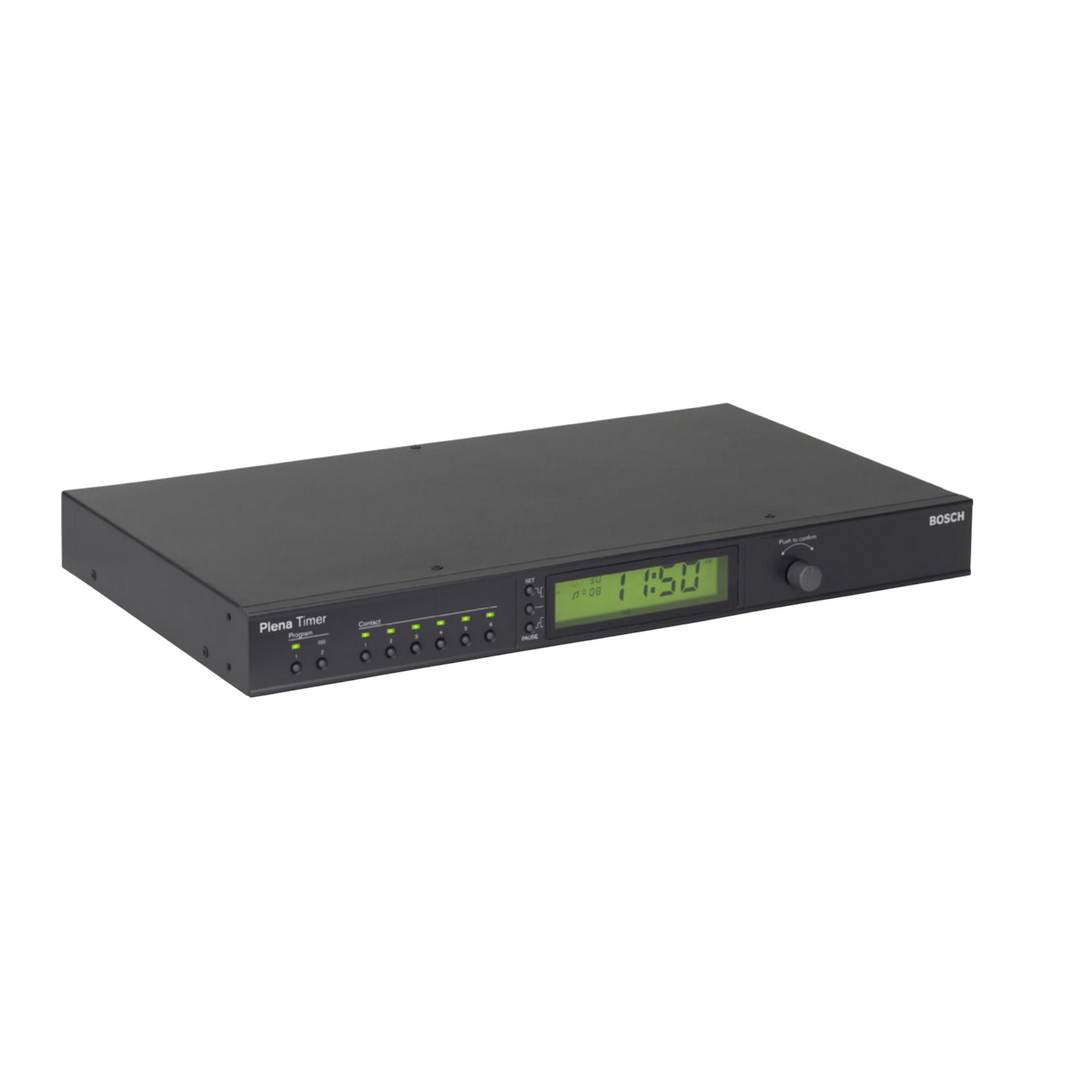

The Plena Weekly Timer is a precise, versatile timer system designed for use in public address systems, particularly in environments like schools, shopping malls, and venues requiring scheduled messages, signals, or other controlled events. It is well-suited for integration with the Plena Message Manager and Voice Alarm System, making it ideal for complex scheduling needs.

The unit features two separate weekly schedules, with the ability to assign multiple events to each minute of the day. Each event can trigger different actions, including playing chimes, controlling the output contacts, or adjusting background music levels. Events can be programmed and controlled via the front panel, USB connection, or RS-232 for syncing with external displays.

Key Functions:

• Weekly Scheduling:

  • Program events for each minute, with separate schedules for each day.
  • Choose between two independent schedules, selectable via the front panel.

• Event Triggers:

  • Each event can trigger one or more of the following:
    • Chimes: 14 different chimes available.
    • Contact Outputs: Six programmable contact outputs (open, close, or pulse).
    • BGM Volume Change: Adjust the background music (BGM) volume to a preset level.

• Clock Synchronization:

  • Automatic synchronization with an external clock or PC via USB.
  • Supports synchronization with a time server and maintains accurate date and time.
  • Automatic switching between daylight saving time and standard time (based on European, North American, or user-defined dates).

• Battery Backup:

  • Includes a 24V backup power input with reverse-polarity protection, as well as a battery to preserve the correct clock settings during power outages.

• Audio Input/Output:

  • Includes an audio input and output for controlling background music signals.
  • The volume can be set manually or programmed to change at predefined times (e.g., lowering the music volume in the morning and returning to a normal level later).

Connectivity:

• Line Input: 1 x XLR balanced connector (sensitivity 1 V, impedance >5 kohm).
• Line Output: 1 x XLR balanced connector (impedance >100 ohm).
• Output Contacts: 6 programmable contacts (100V, 1A, voltage-free).
• Clock Sync Input: Contact closure synchronizes to the nearest hour.
• USB and RS-232 Ports: For synchronization, programming, and connecting to external devices (like large displays).

Controls and Indicators:

• Front Panel:
  • Display of current time, scheduled events, and program status.
  • Buttons for controlling event triggers, contact outputs, and BGM volume.
• Synchronization and Programming:
  • Sync time with external sources via USB or manually configure events from the front panel.
  • RS-232 connector available for large display connections.

Certifications & Approvals:

• Safety: EN 60065
• Immunity: EN 55103-2
• Emission: EN 55103-1
• Region: CE (Europe)

Parts Included:

• 1 Plena Weekly Timer (PLN-6TMW)
• 1 Power cord
• 1 Set of 19” mounting brackets
• 1 Plena CD
• 1 Instructions for use

Technical Specifications:

• Electrical:
  • Mains Power Supply: 230/115VAC, ±15%, 50/60 Hz
  • Max Power Consumption: 30 W
  • Battery Power Supply: 24 VDC (±15%), max 1 A
• Performance:
  • Frequency Response: 20 Hz to 20 kHz (-3 dB)
  • Total Harmonic Distortion: <0.01% (1 kHz)
  • S/N Ratio: >85 dB
  • Dynamic Range: >100 dB
• Clock Accuracy:
  • Without sync: <2s/month at 25°C
  • With sync: Time synchronized to the nearest hour
• Mechanical:
  • Dimensions: 48 x 440 x 312 mm (1.88 x 17.32 x 12.28 inches, without brackets)
  • Weight: Approx. 3 kg (6.6 lbs)
  • Mounting: Stand-alone or 19” rack
  • Color: Charcoal with silver

Environmental:

• Operating Temperature: -10 ºC to +55 ºC (14 ºF to +131 ºF)
• Storage Temperature: -40 ºC to +70 ºC (-40 ºF to +158 ºF)
• Relative Humidity: Not specified
